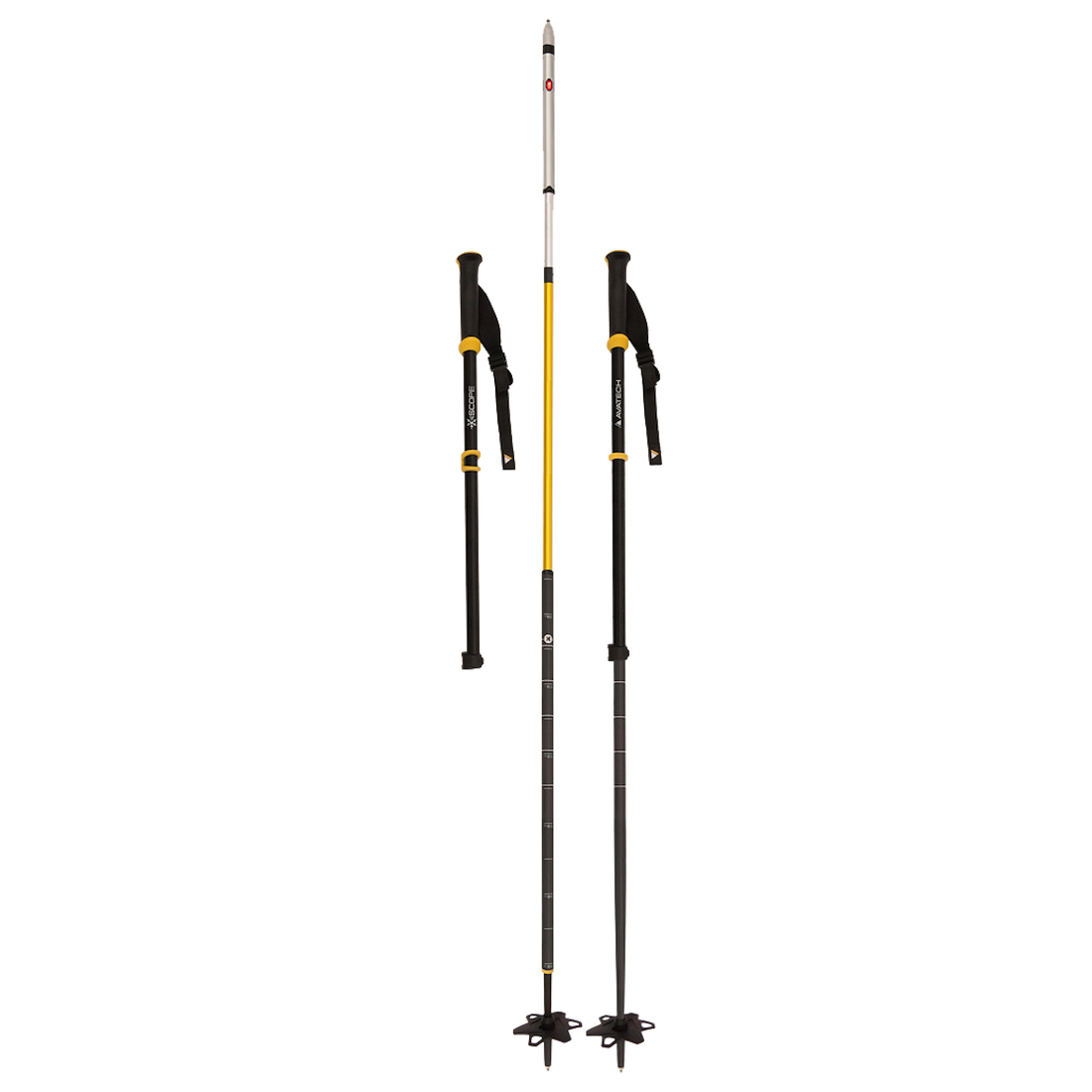

SCOPE

SCOPE is a complete redesign of the Smart Probe technology packaged in a light and convenient ski pole. I was responsible for initial concept generation, user interaction, and redesigning the SP1/SP2 technology to fit inside a 20 mm diameter ski pole.

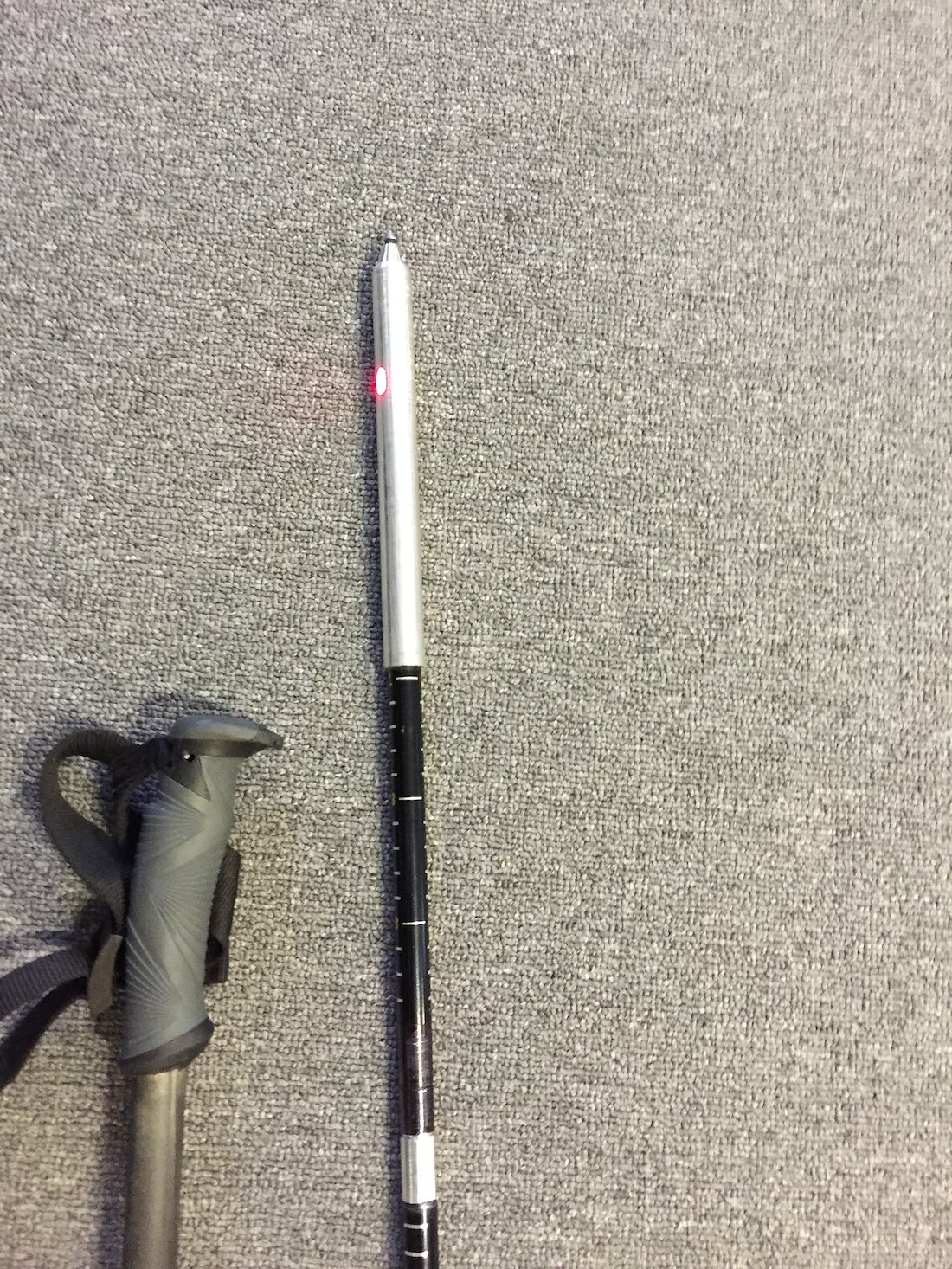

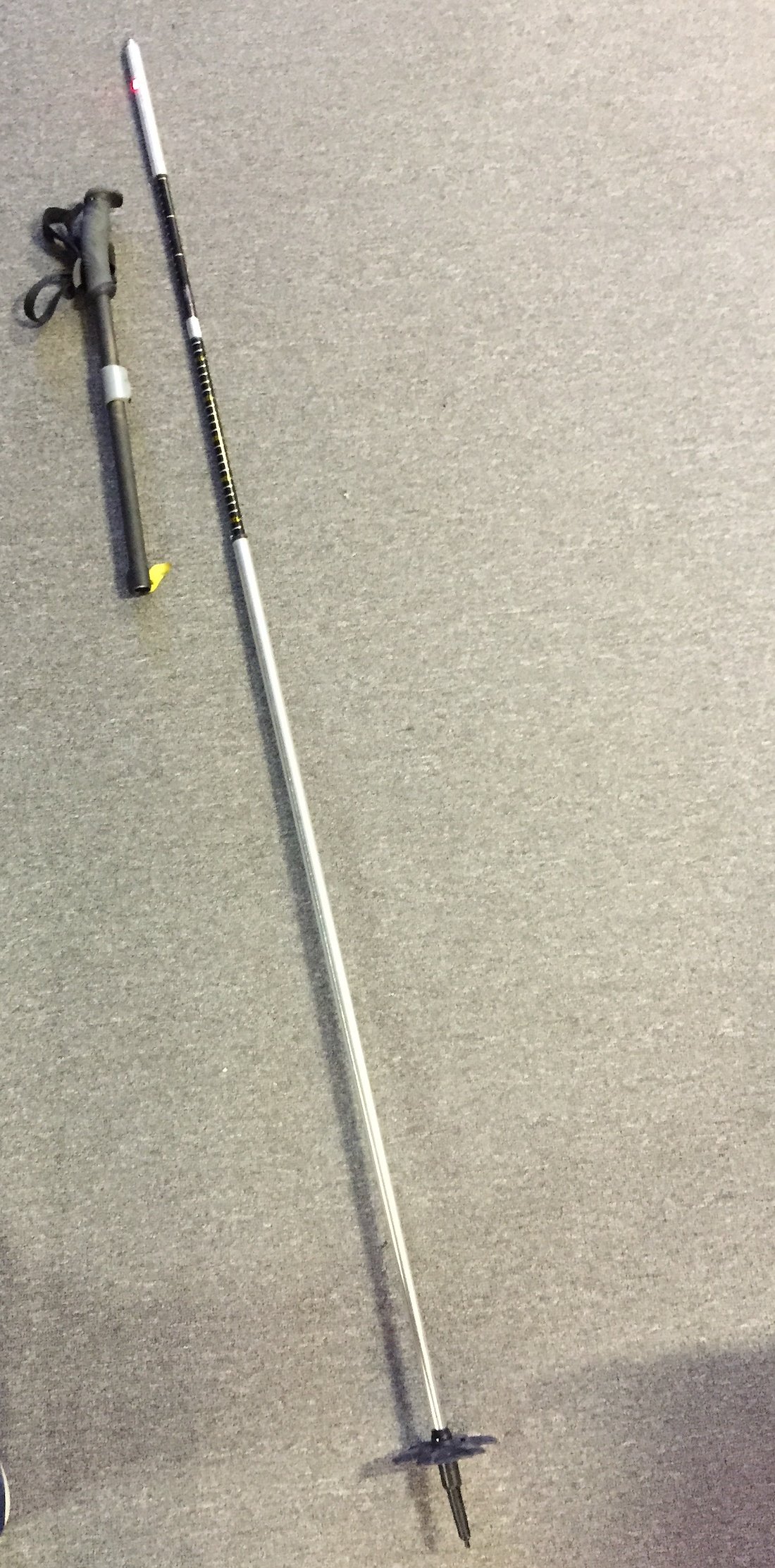

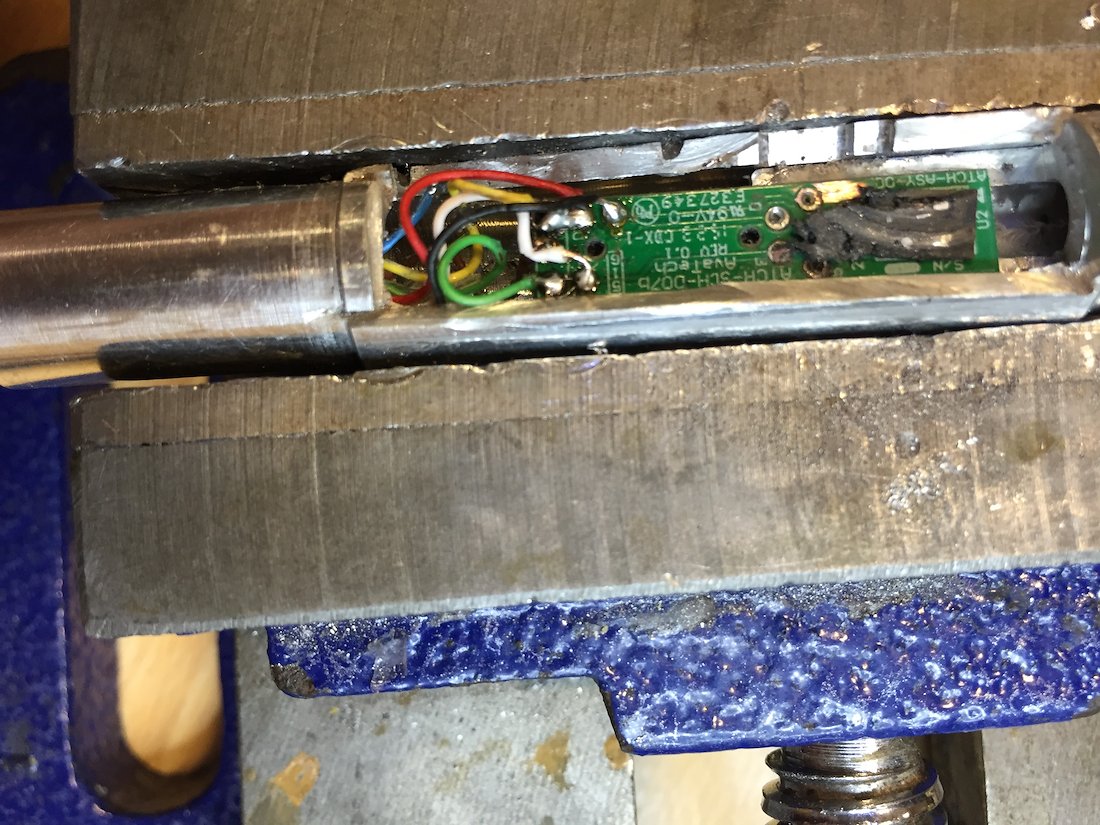

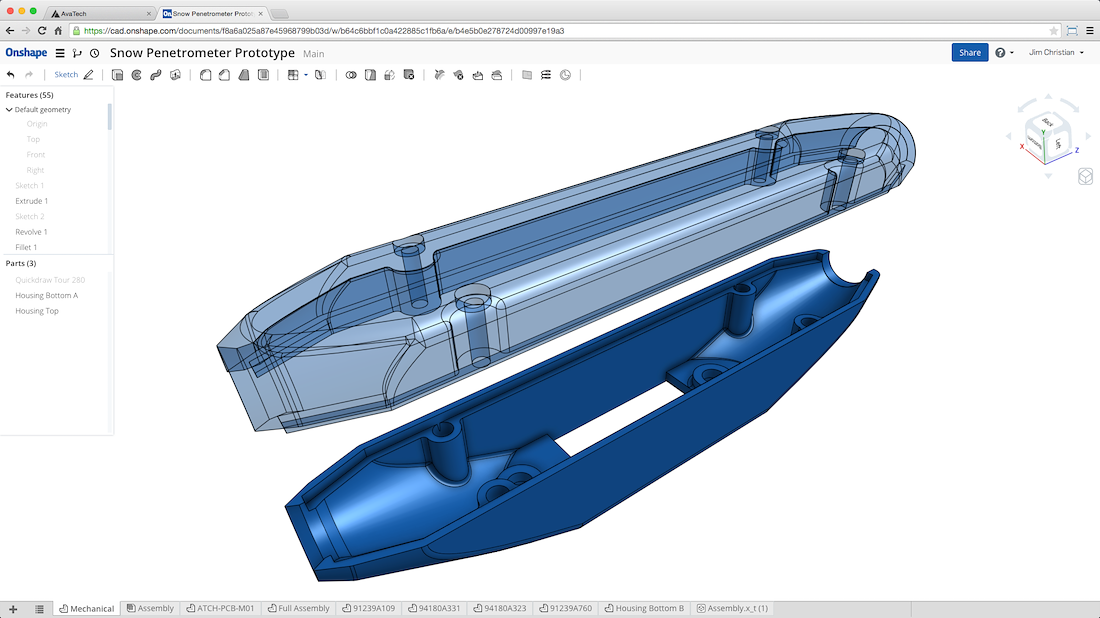

I created several works-like and looks-like prototypes used for testing and sales samples — from hand-soldered optical sensor electronic prototypes to ergonomic grip designs. The team brought the concept to a fully manufacturable product, working directly with contract manufacturers to ensure the groundbreaking design could be produced at scale.

The Challenge

The biggest challenge was creating an all-new category in the snow safety market, balancing skiing dynamics, strength, weight and technology while ensuring skiers could successfully use the product in demanding environments. I led user experience and interaction design to create a product that utilizes complex technology while delivering easy-to-understand test results.

Technology

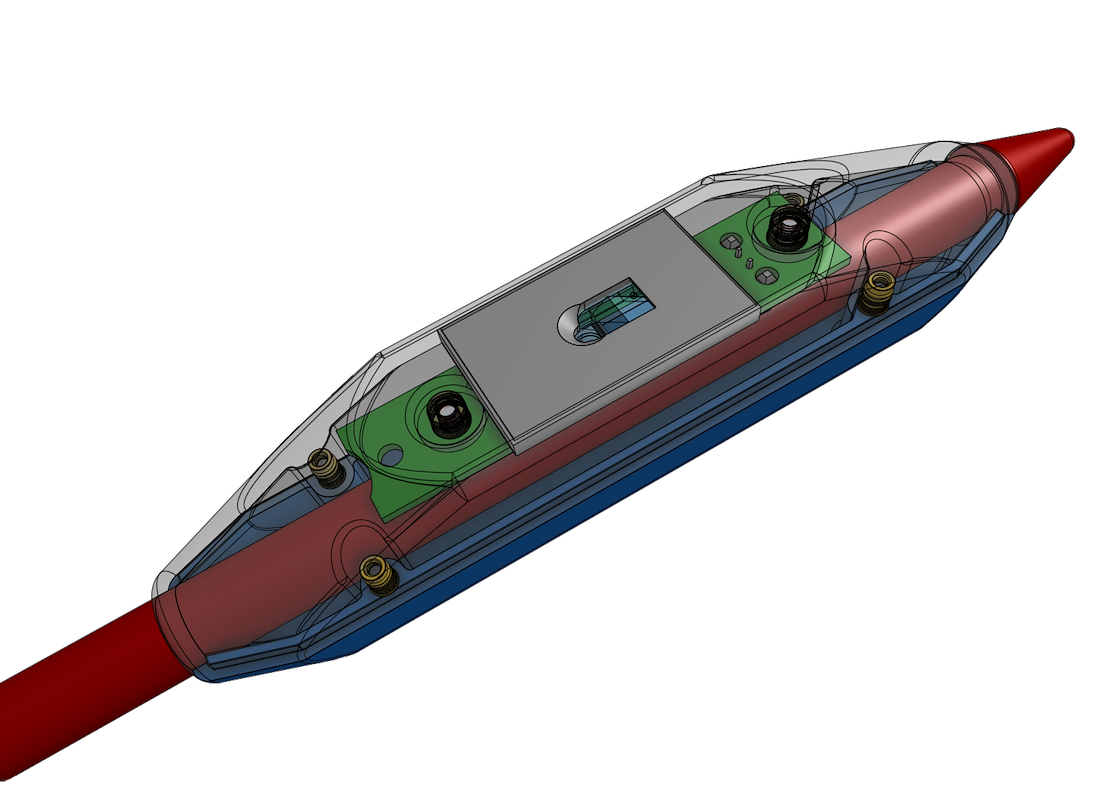

SCOPE uses new, more accurate depth and force measurement technology packaged in a light and durable carbon fiber ski pole. I led research and development on the new depth system utilizing optical flow algorithms as the probe is pushed into snow. The depth system achieves +/- 1 cm accuracy while probing at up to 3 m/s.

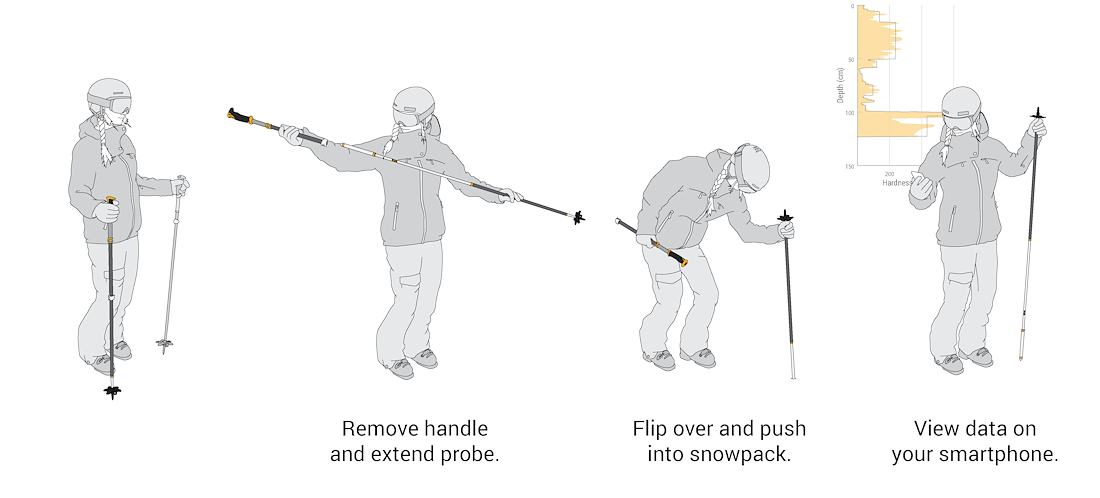

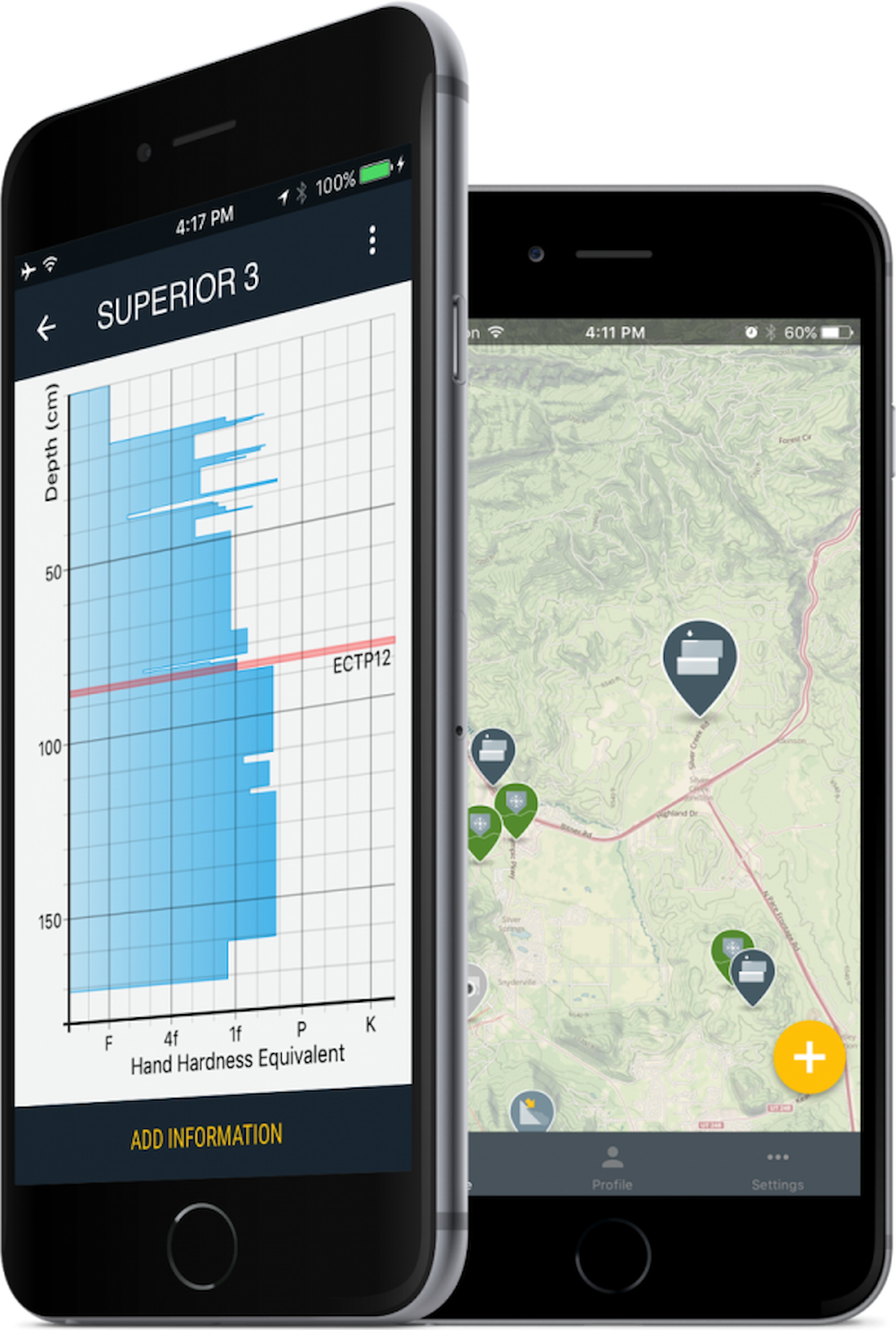

SCOPE combines haptic feedback and visual indicators on the device with an app showing detailed test results, ensuring seamless user experience between device and application.

Press

"For better or worse the technology for skiing the backcountry has expanded greatly in the last five years... The one piece of technology that has stayed relatively stagnant has been the humble ski pole, until now."

— Teton Gravity Research
